Harmon (Recessed) Hinge
Harmon (Recessed) Hinge
Equipped with a Non-Contact Bearing Assembly.
Designed for 1 1⁄4 through 3 inch thick Average Frequency Doors.
Universal Handing. Regularly Furnished with No. 12 × 1 1⁄2" FHWS.
Solid Extruded Brass.
Standard, Custom Plated and Patinated Finishes Available.
Dimensions in Inches.

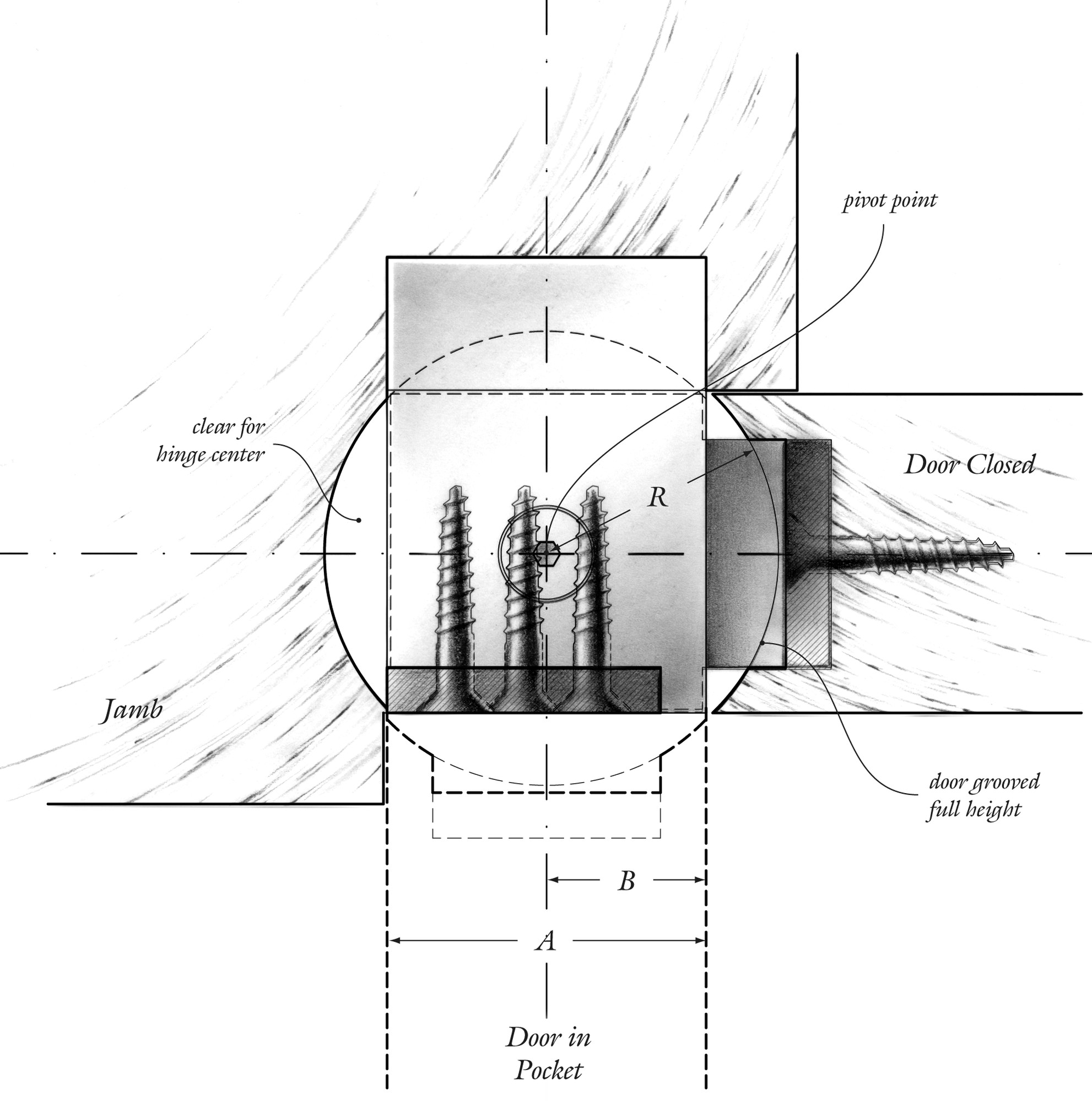

Refer to Diagram.
| Door | Hinge (A) | Center (B) | Radius (R) | ||
|---|---|---|---|---|---|
| 1 1/4 | 1 1/4 | 5/8 | 15/16 | ||
| 1 3/8 | 1 3/8 | 1 1/16 | 1 1/32 | ||
| 1 3/4 | 1 3/4 | 7/8 | 1 5/16 | ||
| 2 | 2 | 1 | 1 15/32 | ||
| 2 1/4 | 2 1/4 | 1 1/8 | 1 1/32 | ||
| 2 1/2 | 2 1/2 | 1 1/4 | 1 7/32 | ||
| 2 3/4 | 2 3/4 | 1 3/8 | 2 | ||
| 3 | 3 | 1 1/2 | 2 3/16 | ||
